Corrosion Special Topical Papers

Protective Coatings: Performance Evaluation and Life Prediction*

Dr. Jianhai Qiu
School of Materials Engineering
Nanyang Technological University
Nanyang Avenue, Singapore 639797

Electrochemical Impedance Spectroscopy (EIS)

Fig.4 [4] is the impedance spectra for a rubberized fibre coating applied on a properly prepared steel surface. The pore resistance remained high even after 14 weeks immersion in 3.5% NaCl solution, whereas for the same coating applied on the steel substrate with mill scales, a noticeable decrease in the pore resistance is observed after 1 week immersion in NaCl solution (Fig.5).


.

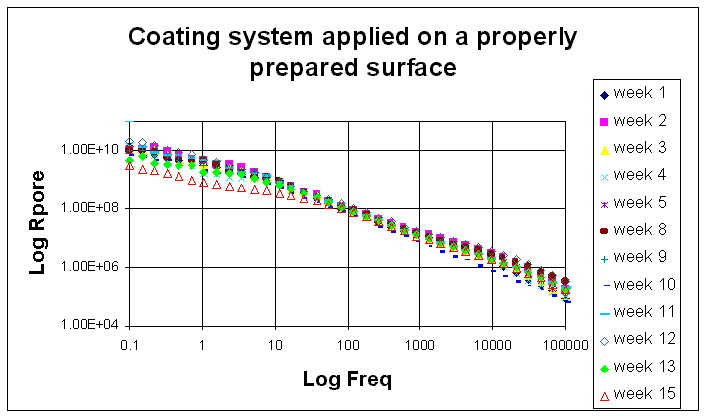

Fig.4 The pore resistance remains high after 15 weeks immersion in 3.5% NaCl solution

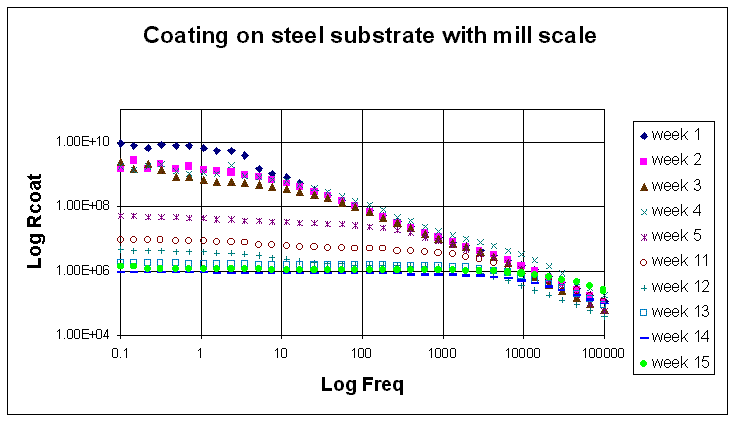

Fig.5 The pore resistance decreased to below 108 after 5 weeks immersion in NaCl solution

In general, when a coating system can maintain the impedance value above 109 Ohm.cm2 , corrosion at the metal/coating interface should not be an issue. When the impedance value drops below 107 Ohms.cm2 , one should be concerned about the corrosion activity at the metal/coating interface. The corrosion rate underneath the coating can be determined from Rt:

CorrRate (mm/y) = k* (B/Rt)

where k is the conversion factor and B is the proportionality constants determined by Tafel polarisation.
